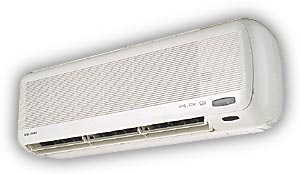

Model SHW: Super Heavy Wall


Please place across against the desired type/s
for obtaining a quotation:

Technical data: type type type type type type type
Type Indoor unit SHW SHW-10 SHW-13 SHW-18 SHW-25 SHW-28 SHW-33 SHW-36
Matching outdoor unit (R22) • SOR-10 SOR-13 SOR-18 SOS-25 SOR-28 SOS-33 SOS-36
Matching outdoor unit (R407) • SOR-10/07 SOR-13/07 SOR-18/07 SOS-25/07 SOR-28/07 SOS-33/07 SOS-36/07
Cooling capacity (R22) BTU/h 9,800 12,400 18,200 24,500 27,500 32,500 36,400
Watt 2,780 3,930 5,330 7,180 8,060 9,530 10,670
Cooling capacity (R407) BTU/h 9,500 11,800 17,500 24,100 27,100 31,800 34,200
Watt 2,780 3,460 5,130 7,060 7,940 9,520 10,020
Heating capacity (R22) BTU/h 10,500 13,400 18,500 25,100 28,100 33,500 36,800
Watt 3,080 3,930 5,420 7,360 8,240 9,820 10,790
Heating capacity (R407) BTU/h 10,010 13,000 18,100 24,800 27,800 32,800 35,700
Watt 2,930 3,810 5,300 7,270 8,150 9,610 10,460
Power source • 220-240 V/1 PH/50Hz
Power input (R22) cool Watt 930 1,200 1,690 2,350 2,680 3,200 3,914
heat Watt 980 1,250 1,750 2,400 2,700 3,300 4,000
Power input (R407) cool Watt 910 1,140 1,670 2,320 2,620 3,140 3,720
heat Watt 950 1,190 1,720 2,380 2,650 3,150 3,800
Running current (R22) cool Amps. 4.04 5.22 7.35 10.22 11.65 13.91 17.02
heat Amps. 4.26 5.43 7.61 10.43 11.74 14.35 17.39
Running current (R407) cool Amps. 3.96 4.96 7.26 10.09 11.39 13.65 16.17
heat Amps. 4.13 5.17 7.48 10.35 11.52 13.70 16.52
COP (R22) cool • 3.09 3.03 3.16 3.06 3.01 2.98 2.73
heat • 3.14 3.14 3.10 3.07 3.05 2.98 2.70
COP (R407) cool • 3.06 3.03 3.07 3.04 3.03 2.97 2.69
heat • 3.09 3.20 3.08 3.05 3.07 3.05 2.75
Fan motor / fan type • Permanent Split Capacitor
Motor output x Qty W 24x1 24x1 32x1 32x1 32x1 46x1 46x1
Speed Steps 3 Steps & Auto
Fan quantity • 1 1 1 1 1 2 2
Air flow rate (at high) CFM 420 420 580 700 750 900 900
Noise rating dB(A) 32 34 36 38 40 46 46
Air direction control • Mannual left & right, Auto up & down
Air filter • Washable prefilter, Air purifying system, Deodorant and
anti- bacterial filter
Temperature control • Microprocessor Control 15-30 °C, Step 0.5 °C
Fin coil type • Aluminium louver slit Coated Fin with Inner Grooved Copper Tube, Dia 7 mm
Rows / fin per inch • 2/21 2/21 2/21 2/21 2/21 3/17 3/17
Coil face area sg. ft. 2.3 2.3 3.7 3.7 3.7 3.4 3.4
Pipe connection • Flared Type
Liquid pipe Inch 1/4 1/4 3/8 3/8 3/8 1/2 1/2
Suction pipe Inch 3/8 3/8 1/2 5/8 5/8 3/4 3/4
Drain pipe Inch 1/2
Dimension (HxWxD) mm 288x918x198 328x118x218 360x1523x220
Packing Dimension (HxWxD) mm 365x1010x278 398x1280x298 442x1614x314
Net weight kgs 10 10 22 22 22 28 28
Gross Weight kgs 12 12 27 27 27 34 34


Cooling capacities and electrical characteristics are based on 27 °C DB, 19 °C WB indoor temp. and 35 °C DB outdoortemp. at high speed.
Heating capacities and electrical characteristics are based on 20°C DB, 15°C WB indoor temp. and 7 °C DB, 6 °C WB outdoortemp. at high speed.

This specification is subject to changes without notification in advance.
